the NDS (ANSI/AWC NDS) under the IBC / IRC
Design Sterling CLT to the NDS
SPEC Toolbox designs Sterling TerraLam cross-laminated timber to the NDS (ANSI/AWC NDS) under the IBC and IRC, using the reference design values of ICC-ES ESR-5053 (rated to ANSI/APA PRG-320), in ASD or LRFD. The integration covers the V3+, V4+ and EH-T grades in three-, five- and seven-ply layups (TL300S, TL500S, TL700S), 4-1/8 to 9-5/8 in. thick, for load-bearing floors, roofs and walls. The panel values are taken from the integrated database.
Start Designing for Free → Back to Sterling → ICC-ES ESR-5053 · Issue Date: August 2026
Open Calculator →
Designing Sterling CLT to the NDS
Sterling (Sterling Structural) manufactures TerraLam cross-laminated timber. In the US it is recognized under ICC-ES ESR-5053, rated to ANSI/APA PRG-320. SPEC Toolbox designs the panels to the NDS, in allowable stress design or LRFD.
The integration covers Sterling TerraLam CLT, at least three planed sawn-lumber laminations glued crosswise and face-bonded with a non-formaldehyde polyurethane structural adhesive.
At a glance, in the US scope the Sterling TerraLam panels support:

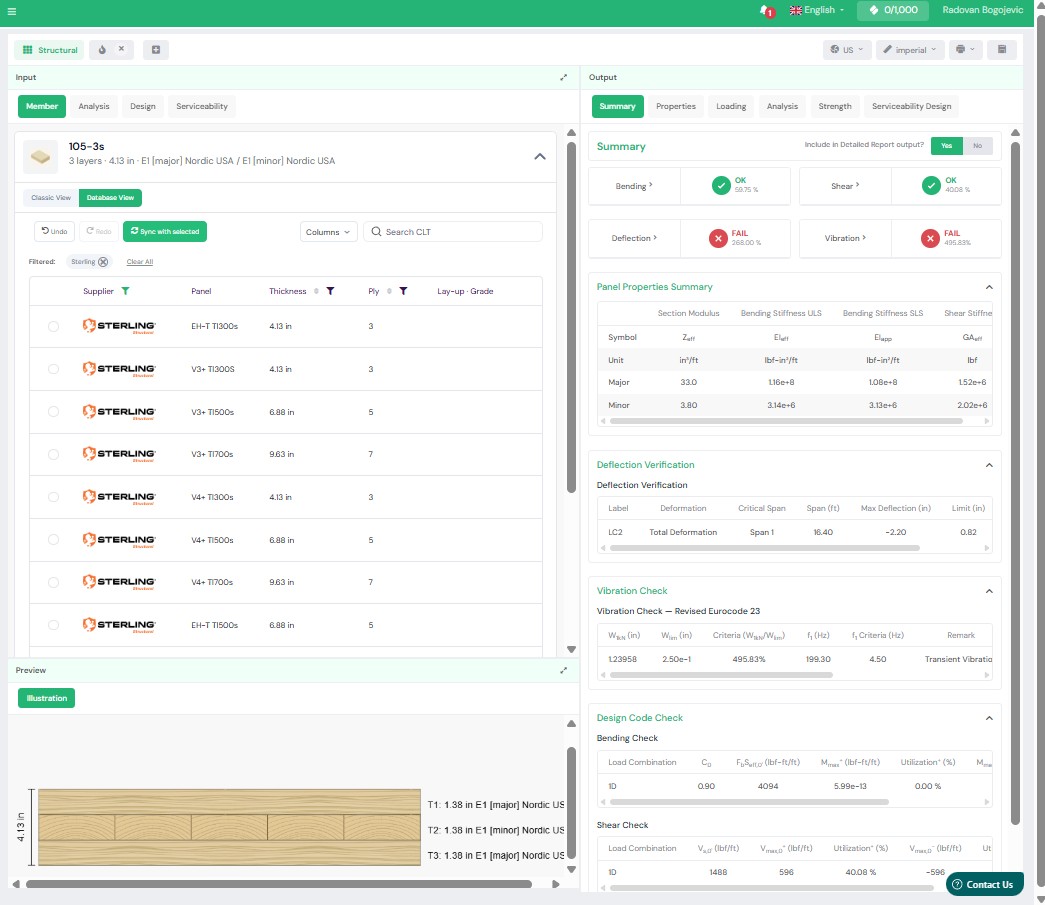

The Sterling TerraLam panels are available across the SPEC Toolbox CLT modules, worked in ASD or LRFD to the NDS:
and in the connection modules:
Panel behaviour is taken from the integrated database with the reference design values of ESR-5053, using the grade specific gravity (Southern pine 0.55, Eastern hemlock-tamarack 0.41, SPF-South 0.36) for fastener design.
Design follows the ANSI/AWC NDS under the IBC and IRC. ICC-ES ESR-5053 publishes ASD reference design values for TerraLam CLT, rated to ANSI/APA PRG-320: effective bending capacity, bending and shear stiffness, and shear, in the major and minor directions, for the V3+, V4+ and EH-T grades. These are adjusted per NDS Table 10.3.1, without the lumber size or flat-use factor, with a creep factor of 2.0 applied to long-term deflection; LRFD strengths are obtained by multiplying by the NDS Table 10.3.1 factors. The laminations are No. 2 Southern pine, SPF-South or Eastern hemlock-tamarack, the basis for connection design per the NDS. The evaluation is for dry service (in-service moisture content below 16 percent); fire resistance is determined by calculation per NDS Chapter 16 or by test to ASTM E119, and shear-wall unit shear follows the AWC SDPWS. The panels also carry Chicago and California (including DSA and OSHPD) building-code supplements.
“Working with SPEC Toolbox seems like the best solution. They are providing software that takes a lot of the guesswork out of designing with mass timber for architects and engineers, and we could not be more excited to be on this platform.”
Sidney Filippis, Director of Design, Sterling Structural
It is written against ICC-ES ESR-5053, reissued August 2026 and under a continuous compliance program through August 2027, including its Chicago and California supplements. Values are re-checked against the report at its next reissue before the integrated data changes.
TerraLam CLT in three grades – V3+ (Southern pine), V4+ (SPF-South) and EH-T (Eastern hemlock-tamarack) – in the TL300S, TL500S and TL700S layups (three, five and seven plies), 4-1/8 to 9-5/8 in. thick, in panels up to 8 ft wide and 18 ft long.
Load-bearing floors, roofs and interior and exterior walls, in ASD or LRFD, in dry service (in-service moisture content below 16 percent).
