SPEC Toolbox Product Integrations

The Fastest Way To Design Simpson Strong-Tie Products

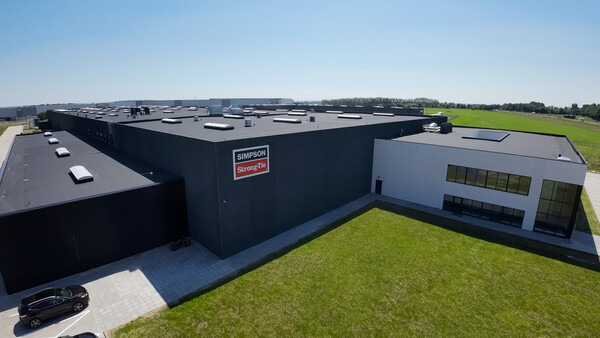

About Simpson Strong-Tie

Simpson Strong-Tie, a global leader in structural connection systems, offers a comprehensive portfolio of engineered solutions for mass timber construction. With over 65 years of innovation in fastening and anchoring technologies, the company is trusted worldwide for high-performance connectors, fasteners, and seismic solutions that meet the demands of modern timber buildings.

Simpson Strong-Tie’s structural screws, anchors, and connectors are engineered for high-load applications and streamlined installation, supporting the needs of off-site and modular timber construction. Backed by extensive code-compliant testing, in-house engineering support, and design resources, these solutions empower structural engineers and builders to specify mass timber assemblies with confidence.

By combining technical excellence, design integration, and proven on-site performance, Simpson Strong-Tie is a trusted partner in advancing the future of mass timber construction—delivering strength you can depend on from foundation to ridge.

Simpson Strong-Tie Platform Updates

Recent Product Updates

The Fastest Growing Platform for Timber Specification

Release 2.5.0 – Half-lap and Spline joints

Release 2.5.0 – Half-lap and Spline joints

Release 2.4.0 – New Fire Module Is Here

Release 2.4.0 – New Fire Module Is Here

Release 2.1.10 New Composite Systems: Timber-Concrete Composites & Ribbed Deck Calculators.

Release 2.1.10 New Composite Systems: Timber-Concrete Composites & Ribbed Deck Calculators.

Release 2.1.1 – CLT to Steel Beam Connection Details, Dowel/Bolt Updates, Screw Filtering & More!

Release 2.1.1 – CLT to Steel Beam Connection Details, Dowel/Bolt Updates, Screw Filtering & More!

Release 2.1.2- USA and Canada Beta Version

Release 2.1.2- USA and Canada Beta Version

Release 2.1.3 – Focus on Perpendicular to Grain Compression

Release 2.1.3 – Focus on Perpendicular to Grain Compression

Release 2.1.4 – Fire Design!

Release 2.1.4 – Fire Design!

Release 2.1.5 – New Bracket Calculator Category

Release 2.1.5 – New Bracket Calculator Category

Release 2.1.6 – Major Updates & New National Annexes

Release 2.1.6 – Major Updates & New National Annexes

Release 2.1.7 – Screw Connections

Release 2.1.7 – Screw Connections

Release 2.1.8 – Analysis & One Page Summaries!

Release 2.1.8 – Analysis & One Page Summaries!

SPEC Toolbox Release!

SPEC Toolbox Release!

Products Integrated

Explore the Simpson Strong-Tie Integrated System with SPEC Toolbox, a game-changing solution for modern construction that boosts efficiency and precision. Its intuitive interface allows architects and builders to seamlessly integrate Simpson Strong-Tie products for enhanced performance and sustainability.

ScrewsScrews
Hold-downHold-down
Angle-bracketAngle-bracket
Shear plateShear plate
Tension strapTension strap
Screw Family Thread Type Head Type Diameter [in] Length [in] Service Condition Specification
SDCF Fully Threaded Flat Head 0.315-0.470 4 – 23 5/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCFC Fully Threaded Cylinder Head 0.315-0.390 4 3/4 – 39 3/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point

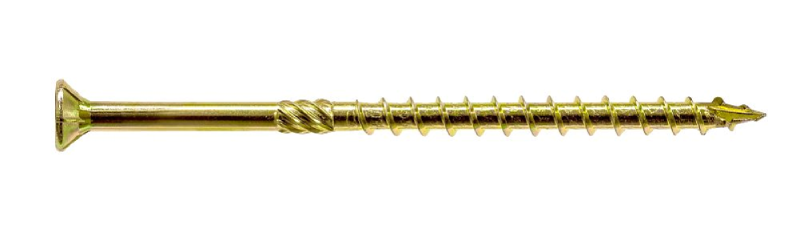

SDCP Partially Threaded Flat Head 0.315-0.39 3 1/8 – 14 Dry 6-lobe drive, Interior grade yellow zinc coating, Type 17 point for fast start
SDHR Partially Threaded Combo Head 0.39-0.470 4 – 6 1/4 Dry For use with steel side plates, 6-lobe or a hex-head driver, Interior grade black E-Coat coating, Type 17 point

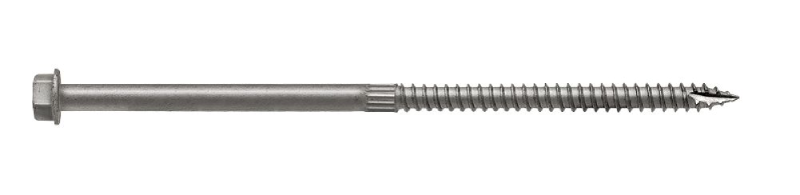

SDS Partially Threaded Hex Head 0.25 1 1/2 – 8 Wet With a double-barrier coating and Type 316 stainless steel, Type 17 point

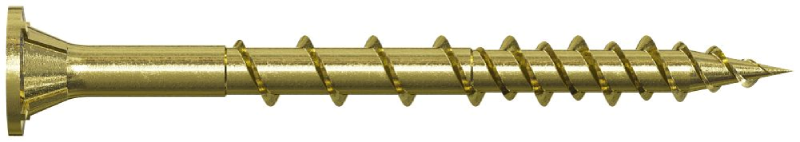

WSV Partially Threaded Rimmed Flat Head with Nibs 0.112 1 3/4 – 3 Dry 6-lobe T25 bit, Point and thread pattern provides easy starts
SDWC Fully Threaded Cap Head 0.235 4 1/2 – 6 Dry 6-lobe T30 bit, Type-17 point, Carbon steel

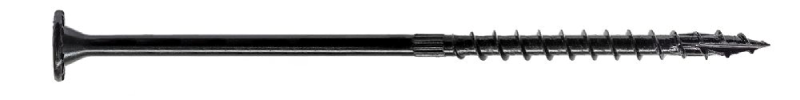

SDWS Partially Threaded Washer Head 0.275-0.395 4 – 18 Dry/Wet 6-lobe T40 bit, Saw Tooth point

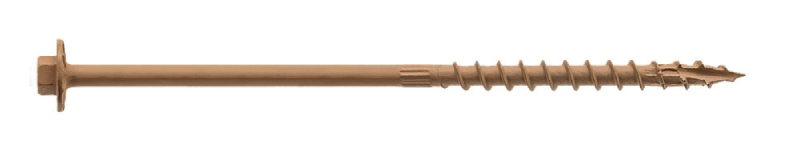

SDWH Partially Threaded Hex Washer Head 0.275 4 – 15 Wet Saw Tooth point, Hex Drive
SDWV Double Threaded Flat Head 0.185 4 Dry 6-lobe drive, fast start-point
SWD Double Threaded Cylinder Head 0.255-0.315 2 1/2 – 10 3/4 Wet 6-lobe drive, black, exterior-grade, double-barrier coating for corrosion resistance
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
HTT4 Z275 Pre-galvanised mild steel 60×314 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT5 Z275 Pre-galvanised mild steel 56×403 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT2E Z275 Pre-galvanised mild steel 60×558 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT31 Z275 Pre-galvanised mild steel 60×790 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE9 – SDS3.5 A653 (G90 and HDG) 109×442 2.5 30.30 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE13 – SDS3.5 A653 (G90 and HDG) 109×586 2.5 59.40 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE17 – SDS4.5 A653 (G90 and HDG) 132×708 3.5 73.50 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
AE48 S250GD + Z275 48×90 3 10.6 – 10.8 0.95 – 1.75 “• For mounting timber to concrete or timber to timber
AE76 S250GD + Z275 48×90 3 11.6 – 14.2 3.35 – 6.15 • High capacity for both shear and tension joints
AE116 S250GD + Z275 48×90 3 10.3 – 16.5 11.5 – 14.8 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR255 S250GD + Z275 100×120 3 24.7 58.6 “• For mounting timber to concrete or timber to timber
ABR7015 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR9020 S250GD + Z275 88×88 2 7.82 6.17 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR10525 S250GD + Z275 105×105 2.5 6.35 5.36 “• For mounting timber to concrete or timber to timber
ABR100 S250GD + Z275 103×103 2 13.8 10 • High capacity for both shear and tension joints
ABR70 S250GD + Z275 70×70 2 4.43 3.65 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR90 S250GD + Z275 90×90 2.5 11 2.47 “• For mounting timber to concrete or timber to timber
ABRL98 S250GD + Z275 98×98 3 5.4 4.85 • High capacity for both shear and tension joints
ABR105 S250GD + Z275 105×105 3 8.96 3.83 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR9015 S250GD + Z275 89×89 1.5 6.6 5.23 “• For mounting timber to concrete or timber to timber
ABR7020 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR170 S250GD + Z275 40×170 2 5.95 3 • Can be applied to solid timber, glulam, CLT and LVL panels”
E5/2 S250GD + Z275 49.5×76.5 2 4.19 “• For mounting timber to concrete or timber to timber
ABR220 S250GD + Z275 40×220 2 5.95 • High capacity for both shear and tension joints
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
NPB255 S250GD + Z275 214×214 3 23.9 20.3 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB255SO S250GD + Z275 294×294 3 62.1 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
NPB20100200 S250GD + Z275 100×100 2 20.7 14.7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB200300 S250GD + Z275 200×200 3 62.1 30.8 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
LDSS48 S250GD + Z275 20×76 1.5 7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
MSTC78 S250GD + Z275 30×146 2 15.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
MDCST48 S250GD + Z275 30×95 2 62.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB60400 S250GD + Z275 20×60 2 37 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB100540 S250GD + Z275 20×100 3 43.2 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB140540 S250GD + Z275 20×140 3 136 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
ScrewsScrews
Screw Family Thread Type Head Type Diameter [in] Length [in] Service Condition Specification
SDCF Fully Threaded Flat Head 0.315-0.470 4 – 23 5/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCFC Fully Threaded Cylinder Head 0.315-0.390 4 3/4 – 39 3/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCP Partially Threaded Flat Head 0.315-0.39 3 1/8 – 14 Dry 6-lobe drive, Interior grade yellow zinc coating, Type 17 point for fast start
SDHR Partially Threaded Combo Head 0.39-0.470 4 – 6 1/4 Dry For use with steel side plates, 6-lobe or a hex-head driver, Interior grade black E-Coat coating, Type 17 point
SDS Partially Threaded Hex Head 0.25 1 1/2 – 8 Wet With a double-barrier coating and Type 316 stainless steel, Type 17 point
WSV Partially Threaded Rimmed Flat Head with Nibs 0.112 1 3/4 – 3 Dry 6-lobe T25 bit, Point and thread pattern provides easy starts
SDWC Fully Threaded Cap Head 0.235 4 1/2 – 6 Dry 6-lobe T30 bit, Type-17 point, Carbon steel
SDWS Partially Threaded Washer Head 0.275-0.395 4 – 18 Dry/Wet 6-lobe T40 bit, Saw Tooth point
SDWH Partially Threaded Hex Washer Head 0.275 4 – 15 Wet Saw Tooth point, Hex Drive
SDWV Double Threaded Flat Head 0.185 4 Dry 6-lobe drive, fast start-point
SWD Double Threaded Cylinder Head 0.255-0.315 2 1/2 – 10 3/4 Wet 6-lobe drive, black, exterior-grade, double-barrier coating for corrosion resistance
Hold-downHold-down
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
HTT4 Z275 Pre-galvanised mild steel 60×314 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT5 Z275 Pre-galvanised mild steel 56×403 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT2E Z275 Pre-galvanised mild steel 60×558 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT31 Z275 Pre-galvanised mild steel 60×790 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE9 – SDS3.5 A653 (G90 and HDG) 109×442 2.5 30.30 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE13 – SDS3.5 A653 (G90 and HDG) 109×586 2.5 59.40 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE17 – SDS4.5 A653 (G90 and HDG) 132×708 3.5 73.50 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
Angle-bracketAngle-bracket
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
AE48 S250GD + Z275 48×90 3 10.6 – 10.8 0.95 – 1.75 “• For mounting timber to concrete or timber to timber
AE76 S250GD + Z275 48×90 3 11.6 – 14.2 3.35 – 6.15 • High capacity for both shear and tension joints
AE116 S250GD + Z275 48×90 3 10.3 – 16.5 11.5 – 14.8 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR255 S250GD + Z275 100×120 3 24.7 58.6 “• For mounting timber to concrete or timber to timber
ABR7015 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR9020 S250GD + Z275 88×88 2 7.82 6.17 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR10525 S250GD + Z275 105×105 2.5 6.35 5.36 “• For mounting timber to concrete or timber to timber
ABR100 S250GD + Z275 103×103 2 13.8 10 • High capacity for both shear and tension joints
ABR70 S250GD + Z275 70×70 2 4.43 3.65 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR90 S250GD + Z275 90×90 2.5 11 2.47 “• For mounting timber to concrete or timber to timber
ABRL98 S250GD + Z275 98×98 3 5.4 4.85 • High capacity for both shear and tension joints
ABR105 S250GD + Z275 105×105 3 8.96 3.83 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR9015 S250GD + Z275 89×89 1.5 6.6 5.23 “• For mounting timber to concrete or timber to timber
ABR7020 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR170 S250GD + Z275 40×170 2 5.95 3 • Can be applied to solid timber, glulam, CLT and LVL panels”
E5/2 S250GD + Z275 49.5×76.5 2 4.19 “• For mounting timber to concrete or timber to timber
ABR220 S250GD + Z275 40×220 2 5.95 • High capacity for both shear and tension joints
Shear plateShear plate
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
NPB255 S250GD + Z275 214×214 3 23.9 20.3 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB255SO S250GD + Z275 294×294 3 62.1 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
NPB20100200 S250GD + Z275 100×100 2 20.7 14.7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB200300 S250GD + Z275 200×200 3 62.1 30.8 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
LDSS48 S250GD + Z275 20×76 1.5 7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
Tension strapTension strap
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
MSTC78 S250GD + Z275 30×146 2 15.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
MDCST48 S250GD + Z275 30×95 2 62.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB60400 S250GD + Z275 20×60 2 37 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB100540 S250GD + Z275 20×100 3 43.2 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB140540 S250GD + Z275 20×140 3 136 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
ScrewsScrews
Hold-downHold-down
Angle-bracketAngle-bracket
Shear plateShear plate
Tension strapTension strap
Screw Family Thread Type Head Type Diameter [in] Length [in] Service Condition Specification
SDCF Fully Threaded Flat Head 0.315-0.470 4 – 23 5/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCFC Fully Threaded Cylinder Head 0.315-0.390 4 3/4 – 39 3/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCP Partially Threaded Flat Head 0.315-0.39 3 1/8 – 14 Dry 6-lobe drive, Interior grade yellow zinc coating, Type 17 point for fast start
SDHR Partially Threaded Combo Head 0.39-0.470 4 – 6 1/4 Dry For use with steel side plates, 6-lobe or a hex-head driver, Interior grade black E-Coat coating, Type 17 point
SDS Partially Threaded Hex Head 0.25 1 1/2 – 8 Wet With a double-barrier coating and Type 316 stainless steel, Type 17 point
WSV Partially Threaded Rimmed Flat Head with Nibs 0.112 1 3/4 – 3 Dry 6-lobe T25 bit, Point and thread pattern provides easy starts
SDWC Fully Threaded Cap Head 0.235 4 1/2 – 6 Dry 6-lobe T30 bit, Type-17 point, Carbon steel
SDWS Partially Threaded Washer Head 0.275-0.395 4 – 18 Dry/Wet 6-lobe T40 bit, Saw Tooth point
SDWH Partially Threaded Hex Washer Head 0.275 4 – 15 Wet Saw Tooth point, Hex Drive
SDWV Double Threaded Flat Head 0.185 4 Dry 6-lobe drive, fast start-point
SWD Double Threaded Cylinder Head 0.255-0.315 2 1/2 – 10 3/4 Wet 6-lobe drive, black, exterior-grade, double-barrier coating for corrosion resistance
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
HTT4 Z275 Pre-galvanised mild steel 60×314 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT5 Z275 Pre-galvanised mild steel 56×403 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT2E Z275 Pre-galvanised mild steel 60×558 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT31 Z275 Pre-galvanised mild steel 60×790 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE9 – SDS3.5 A653 (G90 and HDG) 109×442 2.5 30.30 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE13 – SDS3.5 A653 (G90 and HDG) 109×586 2.5 59.40 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE17 – SDS4.5 A653 (G90 and HDG) 132×708 3.5 73.50 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
AE48 S250GD + Z275 48×90 3 10.6 – 10.8 0.95 – 1.75 “• For mounting timber to concrete or timber to timber
AE76 S250GD + Z275 48×90 3 11.6 – 14.2 3.35 – 6.15 • High capacity for both shear and tension joints
AE116 S250GD + Z275 48×90 3 10.3 – 16.5 11.5 – 14.8 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR255 S250GD + Z275 100×120 3 24.7 58.6 “• For mounting timber to concrete or timber to timber
ABR7015 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR9020 S250GD + Z275 88×88 2 7.82 6.17 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR10525 S250GD + Z275 105×105 2.5 6.35 5.36 “• For mounting timber to concrete or timber to timber
ABR100 S250GD + Z275 103×103 2 13.8 10 • High capacity for both shear and tension joints
ABR70 S250GD + Z275 70×70 2 4.43 3.65 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR90 S250GD + Z275 90×90 2.5 11 2.47 “• For mounting timber to concrete or timber to timber
ABRL98 S250GD + Z275 98×98 3 5.4 4.85 • High capacity for both shear and tension joints
ABR105 S250GD + Z275 105×105 3 8.96 3.83 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR9015 S250GD + Z275 89×89 1.5 6.6 5.23 “• For mounting timber to concrete or timber to timber
ABR7020 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR170 S250GD + Z275 40×170 2 5.95 3 • Can be applied to solid timber, glulam, CLT and LVL panels”
E5/2 S250GD + Z275 49.5×76.5 2 4.19 “• For mounting timber to concrete or timber to timber
ABR220 S250GD + Z275 40×220 2 5.95 • High capacity for both shear and tension joints
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
NPB255 S250GD + Z275 214×214 3 23.9 20.3 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB255SO S250GD + Z275 294×294 3 62.1 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
NPB20100200 S250GD + Z275 100×100 2 20.7 14.7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB200300 S250GD + Z275 200×200 3 62.1 30.8 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
LDSS48 S250GD + Z275 20×76 1.5 7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
MSTC78 S250GD + Z275 30×146 2 15.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
MDCST48 S250GD + Z275 30×95 2 62.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB60400 S250GD + Z275 20×60 2 37 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB100540 S250GD + Z275 20×100 3 43.2 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB140540 S250GD + Z275 20×140 3 136 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
ScrewsScrews
Screw Family Thread Type Head Type Diameter [in] Length [in] Service Condition Specification
SDCF Fully Threaded Flat Head 0.315-0.470 4 – 23 5/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCFC Fully Threaded Cylinder Head 0.315-0.390 4 3/4 – 39 3/8 Dry 6-lobe drive, Interior grade black E-Coat coating, Sawtooth Point
SDCP Partially Threaded Flat Head 0.315-0.39 3 1/8 – 14 Dry 6-lobe drive, Interior grade yellow zinc coating, Type 17 point for fast start
SDHR Partially Threaded Combo Head 0.39-0.470 4 – 6 1/4 Dry For use with steel side plates, 6-lobe or a hex-head driver, Interior grade black E-Coat coating, Type 17 point
SDS Partially Threaded Hex Head 0.25 1 1/2 – 8 Wet With a double-barrier coating and Type 316 stainless steel, Type 17 point
WSV Partially Threaded Rimmed Flat Head with Nibs 0.112 1 3/4 – 3 Dry 6-lobe T25 bit, Point and thread pattern provides easy starts
SDWC Fully Threaded Cap Head 0.235 4 1/2 – 6 Dry 6-lobe T30 bit, Type-17 point, Carbon steel
SDWS Partially Threaded Washer Head 0.275-0.395 4 – 18 Dry/Wet 6-lobe T40 bit, Saw Tooth point
SDWH Partially Threaded Hex Washer Head 0.275 4 – 15 Wet Saw Tooth point, Hex Drive
SDWV Double Threaded Flat Head 0.185 4 Dry 6-lobe drive, fast start-point
SWD Double Threaded Cylinder Head 0.255-0.315 2 1/2 – 10 3/4 Wet 6-lobe drive, black, exterior-grade, double-barrier coating for corrosion resistance
Hold-downHold-down
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
HTT4 Z275 Pre-galvanised mild steel 60×314 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT5 Z275 Pre-galvanised mild steel 56×403 2.8 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT2E Z275 Pre-galvanised mild steel 60×558 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HTT31 Z275 Pre-galvanised mild steel 60×790 3 15.4 – 31.0 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE9 – SDS3.5 A653 (G90 and HDG) 109×442 2.5 30.30 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE13 – SDS3.5 A653 (G90 and HDG) 109×586 2.5 59.40 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
HDUE17 – SDS4.5 A653 (G90 and HDG) 132×708 3.5 73.50 • For mounting timber to concrete or masonry
• High capacity for both tension joints
• Can be applied to solid timber, glulam, CLT and LVL panels
• Timber structures which exerted to high uplift forces can be connected to concrete structures
Angle-bracketAngle-bracket
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
AE48 S250GD + Z275 48×90 3 10.6 – 10.8 0.95 – 1.75 “• For mounting timber to concrete or timber to timber
AE76 S250GD + Z275 48×90 3 11.6 – 14.2 3.35 – 6.15 • High capacity for both shear and tension joints
AE116 S250GD + Z275 48×90 3 10.3 – 16.5 11.5 – 14.8 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR255 S250GD + Z275 100×120 3 24.7 58.6 “• For mounting timber to concrete or timber to timber
ABR7015 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR9020 S250GD + Z275 88×88 2 7.82 6.17 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR10525 S250GD + Z275 105×105 2.5 6.35 5.36 “• For mounting timber to concrete or timber to timber
ABR100 S250GD + Z275 103×103 2 13.8 10 • High capacity for both shear and tension joints
ABR70 S250GD + Z275 70×70 2 4.43 3.65 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR90 S250GD + Z275 90×90 2.5 11 2.47 “• For mounting timber to concrete or timber to timber
ABRL98 S250GD + Z275 98×98 3 5.4 4.85 • High capacity for both shear and tension joints
ABR105 S250GD + Z275 105×105 3 8.96 3.83 • Can be applied to solid timber, glulam, CLT and LVL panels”
ABR9015 S250GD + Z275 89×89 1.5 6.6 5.23 “• For mounting timber to concrete or timber to timber
ABR7020 S250GD + Z275 70×70 2 3.06 3.67 • High capacity for both shear and tension joints
ABR170 S250GD + Z275 40×170 2 5.95 3 • Can be applied to solid timber, glulam, CLT and LVL panels”
E5/2 S250GD + Z275 49.5×76.5 2 4.19 “• For mounting timber to concrete or timber to timber
ABR220 S250GD + Z275 40×220 2 5.95 • High capacity for both shear and tension joints
Shear plateShear plate
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Load-bearing capacity F23,Rk* [kN] Specification
NPB255 S250GD + Z275 214×214 3 23.9 20.3 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB255SO S250GD + Z275 294×294 3 62.1 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
NPB20100200 S250GD + Z275 100×100 2 20.7 14.7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber , Timber to concrete, CLT to CLT or CLT to concrete connections
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance for horizontal (F2 / F3) and vertical (F1) loads directions
NPB200300 S250GD + Z275 200×200 3 62.1 30.8 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
LDSS48 S250GD + Z275 20×76 1.5 7 • Ideal for use in Timber and CLT buildings
• Great versatility: can be utilised for Timber to Timber
• Can be applied to solid timber, glulam, CLT and LVL panels
• High performance tensile loads
Tension strapTension strap
Bracket Family Material Dimension [mm] Thickness [mm] Load-bearing capacity F1,Rk* [kN] Specification
MSTC78 S250GD + Z275 30×146 2 15.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
MDCST48 S250GD + Z275 30×95 2 62.1 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB60400 S250GD + Z275 20×60 2 37 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB100540 S250GD + Z275 20×100 3 43.2 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
NPB140540 S250GD + Z275 20×140 3 136 • Load-rated, precut strap designed for quick installation and optimal performance
• Loads have been increased for wind and seismic forces
• Can be applied to solid timber, glulam, CLT and LVL panels
• Floor-to-floor clear span application
Share
Close Menu
