Rothoblaas Structural Connector Integrations
The Fastest Way To Design Rothoblaas Products
About Rothoblaas
Founded in 1991 in the Alpine region, Rothoblaas is a leading provider of high-tech solutions for the wood construction sector. The company offers a comprehensive portfolio designed to support projects from foundation to roof, specializing in fastening systems, waterproofing, soundproofing, fall protection equipment, woodworking machinery, and design support.
Driven by a strong dedication to research and development, Rothoblaas consistently delivers reliable and innovative solutions tailored to client needs. Furthermore, their strategic collaboration with CLT Toolbox enhances the precision of mass timber calculations, fostering industry advancement and ensuring all projects meet the highest standards of quality and safety.
Recent Product Updates
The Fastest Growing Platform for Timber Specification
Release 2.5.0 – Half-lap and Spline joints
Release 2.4.0 – New Fire Module Is Here
Release 2.1.10 New Composite Systems: Timber-Concrete Composites & Ribbed Deck Calculators.
Release 2.1.1 – CLT to Steel Beam Connection Details, Dowel/Bolt Updates, Screw Filtering & More!
Release 2.1.2- USA and Canada Beta Version
Release 2.1.3 – Focus on Perpendicular to Grain Compression
Release 2.1.4 – Fire Design!
Release 2.1.5 – New Bracket Calculator Category
Release 2.1.6 – Major Updates & New National Annexes
Release 2.1.7 – Screw Connections
Release 2.1.8 – Analysis & One Page Summaries!
SPEC Toolbox Release!
Products Integrated
Explore the Rothoblaas Integrated System with SPEC Toolbox, a game-changing solution for modern construction that boosts efficiency and precision. Its intuitive interface allows architects and builders to seamlessly integrate Rothoblaas products for enhanced performance and sustainability.
Screws
Brackets| Picture | Screw Family | Thread Type | Head Type | Diameter [in] | Length [in] | Service Condition | Specification |
|---|---|---|---|---|---|---|---|
 |
HBS – Countersunk Screw | Partially Threaded | Countersunk Head | 0.14-0.48 | 1 3/16 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
 |
HBS EVO – Countersunk Screw | Partially Threaded | Countersunk Head | 0.16-0.32 | 1 9/16 – 12 5/8 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
 |
LBS – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 – 4 | Dry | Screws for perforated plates, electrogalvanized carbon steel |
 |
LBS EVO – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 9/16 – 4 | Wet | Screws for perforated plates for outdoor use, C4 EVO coating, carbon steel |
 |
TBS – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.48 | 1 9/16 – 39 3/8 | Dry | Integrated washer, 3 Thorns tip, electrogalvanized carbon steel |
 |

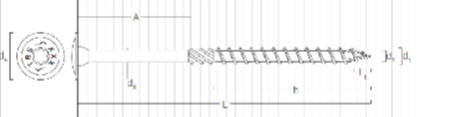

TBS EVO – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.4 | 2 3/8 – 15 3/4 | Wet | C4 EVO coating according to AC257, integrated washer, carbon steel |
 |

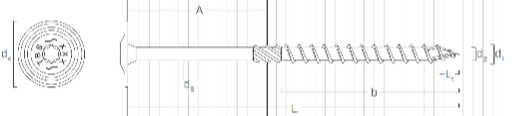

TBS MAX – XL Flange Head Screw | Partially Threaded | Flange Head | 0.32 | 4 3/4 – 15 3/4 | Dry | Longer thread, 3 Thorns tip, electrogalvanized carbon steel |
 |

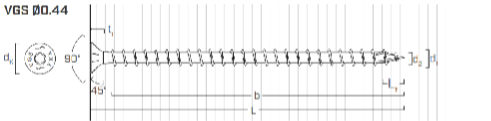

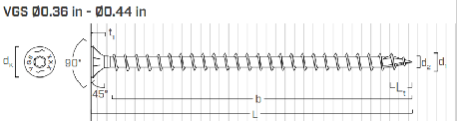

VGS – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.6 | 3 1/8 – 78 3/4 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
 |
VGS EVO – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.52 | 4 – 31 1/2 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
 |
VGZ – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.28-0.44 | 3 1/8 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
 |
VGZ EVO – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.21-0.44 | 3 1/8 – 23 5/8 | Dry | C4 coating, carbon steel |
 |

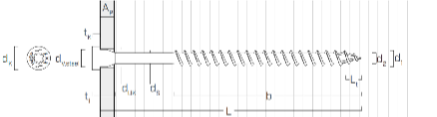

HBS Plate – Pan Head Screw for Plates | Plate Screw | Pan Head | 0.32-0.48 | 2 3/8 – 8 | Dry | Plate fastening, 3 Thorns tip, electrogalvanized carbon steel |
 |
HBS Plate EVO – Pan Head Screw | Plate Screw | Pan Head | 0.2-0.48 | 1 15/18 – 8 | Wet | C4 EVO coating, plate fastening, carbon steel |
 |
Bracket Family | Material | Dimension [mm] | Thickness [mm] | F1,Rk [kN] | F23,Rk [kN] | F4,Rk [kN] | F5,Rk [kN] | Specification |
|---|---|---|---|---|---|---|---|---|---|
 |
TCN200 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 103×120 | 3+12 | 68.1 – 79.8 | 56.7 – 66.4 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
 |
TCN240 + TCW240 | DX51D + Z275; S235 + Fe/Zn12c | 123×120 | 3+12 | 81.7 – 95.8 | 70.5 – 82.6 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
 |
TCS240 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 123×130 | 3+12 | 33.9 | 85.9 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN200 | DX51D + Z275 | 103×120 | 3 | – | 8.4 – 42.1 | 20.7 – 20.9 | 3.6 – 6.6 | Timber to concrete, shear joints, SC1/SC2 |
|
TCN240 | DX51D + Z275 | 123×120 | 3 | – | 11.7 – 55.2 | 23.9 – 24.1 | 4.3 – 8.0 | Timber to concrete, shear joints, SC1/SC2 |
 |
TTN240 | DX51D + Z275 | 93×120 | 3 | 7.4 – 16.2 | 51.3 – 58.0 | 23.8 | 7.3 | Timber to timber, shear joints, SC1/SC2 |
 |
TTN240 XYLOFON | DX51D + Z275 | 93×120 | 3+3 | – | 41.7 – 43.8 | – | – | Timber to timber, shear joints, SC1/SC2 |
 |
TCS240 | DX51D + Z275 | 123×130 | 3 | – | 36.1 – 70.3 | 21.1 | 17.1 | Timber to timber, shear joints, SC1/SC2 |
 |
TTS240 | DX51D + Z275 | 130×130 | 3 | – | 60 | 20.7 | 16.8 | Timber to timber, shear joints, SC1/SC2 |
 |
TTS240 XYLOFON | DX51D + Z275 | 130×130 | 3 | – | 35.7 | – | – | Timber to timber, shear joints, SC1/SC2 |
 |
TCF200 | DX51D + Z275 | 103×71 | 3 | – | 17.2 – 51.8 | 18.6 | 6.4 – 19.3 | Timber to concrete, shear joints, SC1/SC2 |
 |
TTF200 | DX51D + Z275 | 71×71 | 3 | – | 20.0 – 55.1 | 29.7 | 6.4 – 19.3 | Timber to timber, shear joints, SC1/SC2 |
 |
TTF200 XYLOFON | DX51D + Z275 | 71×71 | 3 | – | 28.3 – 45.1 | – | – | Timber to timber, shear joints, SC1/SC2 |
 |
TTV240 | S275 + Fe/Zn12c | 83×120 | 4 | 51.3 – 101.0 | 51.5 – 73.1 | – | – | Timber to timber, shear & tension, SC1/SC2 |
 |
TTV240 XYLOFON | S275 + Fe/Zn12c | 83×120 | 4 | 50.8 – 99.0 | 49.4 – 61.0 | – | – | Timber to timber, shear & tension, SC1/SC2 |
 |
NINO100100 | S250GD + Z275 | 78×100 | 2.5 | 5.9 – 20.0 | 4.2 – 34.6 | 3.8 – 23.2 | 1.1 – 3.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
 |
NINO15080 | S350GD + Z275 | 55×77 | 2.5 | 4.0 – 39.5 | 10.0 – 34.6 | 7.9 – 22.3 | 1.6 – 4.8 | Timber to timber & concrete, shear & tension, SC1/SC2 |
 |
NINO15080S | S350GD + Z275 | 55×94 | 2.5 | 32.0 – 49.9 | 22.6 – 35.0 | 14.2 – 18.9 | 1.4 – 2.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
 |
NINO100200 | S250GD + Z275 | 122×197 | 3 | 41.2 | 8.3 – 18.7 | 2.1 – 19.1 | 2.8 – 21.7 | Timber to timber & concrete, shear & tension, SC1/SC2 |
Screws| Picture | Screw Family | Thread Type | Head Type | Diameter [in] | Length [in] | Service Condition | Specification |
|---|---|---|---|---|---|---|---|
|
HBS – Countersunk Screw | Partially Threaded | Countersunk Head | 0.14-0.48 | 1 3/16 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
|
HBS EVO – Countersunk Screw | Partially Threaded | Countersunk Head | 0.16-0.32 | 1 9/16 – 12 5/8 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
|
LBS – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 – 4 | Dry | Screws for perforated plates, electrogalvanized carbon steel |
|
LBS EVO – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 9/16 – 4 | Wet | Screws for perforated plates for outdoor use, C4 EVO coating, carbon steel |
|
TBS – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.48 | 1 9/16 – 39 3/8 | Dry | Integrated washer, 3 Thorns tip, electrogalvanized carbon steel |
|
TBS EVO – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.4 | 2 3/8 – 15 3/4 | Wet | C4 EVO coating according to AC257, integrated washer, carbon steel |
|
TBS MAX – XL Flange Head Screw | Partially Threaded | Flange Head | 0.32 | 4 3/4 – 15 3/4 | Dry | Longer thread, 3 Thorns tip, electrogalvanized carbon steel |
|
VGS – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.6 | 3 1/8 – 78 3/4 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
|
VGS EVO – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.52 | 4 – 31 1/2 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
|
VGZ – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.28-0.44 | 3 1/8 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
|
VGZ EVO – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.21-0.44 | 3 1/8 – 23 5/8 | Dry | C4 coating, carbon steel |
|
HBS Plate – Pan Head Screw for Plates | Plate Screw | Pan Head | 0.32-0.48 | 2 3/8 – 8 | Dry | Plate fastening, 3 Thorns tip, electrogalvanized carbon steel |
|
HBS Plate EVO – Pan Head Screw | Plate Screw | Pan Head | 0.2-0.48 | 1 15/18 – 8 | Wet | C4 EVO coating, plate fastening, carbon steel |
Brackets |
Bracket Family | Material | Dimension [mm] | Thickness [mm] | F1,Rk [kN] | F23,Rk [kN] | F4,Rk [kN] | F5,Rk [kN] | Specification |
|---|---|---|---|---|---|---|---|---|---|
|
TCN200 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 103×120 | 3+12 | 68.1 – 79.8 | 56.7 – 66.4 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN240 + TCW240 | DX51D + Z275; S235 + Fe/Zn12c | 123×120 | 3+12 | 81.7 – 95.8 | 70.5 – 82.6 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCS240 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 123×130 | 3+12 | 33.9 | 85.9 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN200 | DX51D + Z275 | 103×120 | 3 | – | 8.4 – 42.1 | 20.7 – 20.9 | 3.6 – 6.6 | Timber to concrete, shear joints, SC1/SC2 |
|
TCN240 | DX51D + Z275 | 123×120 | 3 | – | 11.7 – 55.2 | 23.9 – 24.1 | 4.3 – 8.0 | Timber to concrete, shear joints, SC1/SC2 |
|
TTN240 | DX51D + Z275 | 93×120 | 3 | 7.4 – 16.2 | 51.3 – 58.0 | 23.8 | 7.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTN240 XYLOFON | DX51D + Z275 | 93×120 | 3+3 | – | 41.7 – 43.8 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCS240 | DX51D + Z275 | 123×130 | 3 | – | 36.1 – 70.3 | 21.1 | 17.1 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 | DX51D + Z275 | 130×130 | 3 | – | 60 | 20.7 | 16.8 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 XYLOFON | DX51D + Z275 | 130×130 | 3 | – | 35.7 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCF200 | DX51D + Z275 | 103×71 | 3 | – | 17.2 – 51.8 | 18.6 | 6.4 – 19.3 | Timber to concrete, shear joints, SC1/SC2 |
|
TTF200 | DX51D + Z275 | 71×71 | 3 | – | 20.0 – 55.1 | 29.7 | 6.4 – 19.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTF200 XYLOFON | DX51D + Z275 | 71×71 | 3 | – | 28.3 – 45.1 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TTV240 | S275 + Fe/Zn12c | 83×120 | 4 | 51.3 – 101.0 | 51.5 – 73.1 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
TTV240 XYLOFON | S275 + Fe/Zn12c | 83×120 | 4 | 50.8 – 99.0 | 49.4 – 61.0 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
NINO100100 | S250GD + Z275 | 78×100 | 2.5 | 5.9 – 20.0 | 4.2 – 34.6 | 3.8 – 23.2 | 1.1 – 3.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080 | S350GD + Z275 | 55×77 | 2.5 | 4.0 – 39.5 | 10.0 – 34.6 | 7.9 – 22.3 | 1.6 – 4.8 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080S | S350GD + Z275 | 55×94 | 2.5 | 32.0 – 49.9 | 22.6 – 35.0 | 14.2 – 18.9 | 1.4 – 2.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO100200 | S250GD + Z275 | 122×197 | 3 | 41.2 | 8.3 – 18.7 | 2.1 – 19.1 | 2.8 – 21.7 | Timber to timber & concrete, shear & tension, SC1/SC2 |
ScrewsBrackets| Picture | Screw Family | Thread Type | Head Type | Diameter [in] | Length [in] | Service Condition | Specification |
|---|---|---|---|---|---|---|---|
| Picture | HBS – Countersunk Screw | Partially Threaded | Countersunk Head | 0.14-0.48 | 1 3/16 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS EVO – Countersunk Screw | Partially Threaded | Countersunk Head | 0.16-0.32 | 1 9/16 – 12 5/8 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | LBS – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 – 4 | Dry | Screws for perforated plates, electrogalvanized carbon steel |
| Picture | LBS EVO – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 9/16 – 4 | Wet | Screws for perforated plates for outdoor use, C4 EVO coating, carbon steel |
| Picture | TBS – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.48 | 1 9/16 – 39 3/8 | Dry | Integrated washer, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | TBS EVO – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.4 | 2 3/8 – 15 3/4 | Wet | C4 EVO coating according to AC257, integrated washer, carbon steel |
| Picture | TBS MAX – XL Flange Head Screw | Partially Threaded | Flange Head | 0.32 | 4 3/4 – 15 3/4 | Dry | Longer thread, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.6 | 3 1/8 – 78 3/4 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS EVO – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.52 | 4 – 31 1/2 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | VGZ – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.28-0.44 | 3 1/8 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGZ EVO – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.21-0.44 | 3 1/8 – 23 5/8 | Dry | C4 coating, carbon steel |
| Picture | HBS Plate – Pan Head Screw for Plates | Plate Screw | Pan Head | 0.32-0.48 | 2 3/8 – 8 | Dry | Plate fastening, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS Plate EVO – Pan Head Screw | Plate Screw | Pan Head | 0.2-0.48 | 1 15/18 – 8 | Wet | C4 EVO coating, plate fastening, carbon steel |
|
Bracket Family | Material | Dimension [mm] | Thickness [mm] | F1,Rk [kN] | F23,Rk [kN] | F4,Rk [kN] | F5,Rk [kN] | Specification |
|---|---|---|---|---|---|---|---|---|---|
|
TCN200 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 103×120 | 3+12 | 68.1 – 79.8 | 56.7 – 66.4 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN240 + TCW240 | DX51D + Z275; S235 + Fe/Zn12c | 123×120 | 3+12 | 81.7 – 95.8 | 70.5 – 82.6 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCS240 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 123×130 | 3+12 | 33.9 | 85.9 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN200 | DX51D + Z275 | 103×120 | 3 | – | 8.4 – 42.1 | 20.7 – 20.9 | 3.6 – 6.6 | Timber to concrete, shear joints, SC1/SC2 |
|
TCN240 | DX51D + Z275 | 123×120 | 3 | – | 11.7 – 55.2 | 23.9 – 24.1 | 4.3 – 8.0 | Timber to concrete, shear joints, SC1/SC2 |
|
TTN240 | DX51D + Z275 | 93×120 | 3 | 7.4 – 16.2 | 51.3 – 58.0 | 23.8 | 7.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTN240 XYLOFON | DX51D + Z275 | 93×120 | 3+3 | – | 41.7 – 43.8 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCS240 | DX51D + Z275 | 123×130 | 3 | – | 36.1 – 70.3 | 21.1 | 17.1 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 | DX51D + Z275 | 130×130 | 3 | – | 60 | 20.7 | 16.8 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 XYLOFON | DX51D + Z275 | 130×130 | 3 | – | 35.7 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCF200 | DX51D + Z275 | 103×71 | 3 | – | 17.2 – 51.8 | 18.6 | 6.4 – 19.3 | Timber to concrete, shear joints, SC1/SC2 |
|
TTF200 | DX51D + Z275 | 71×71 | 3 | – | 20.0 – 55.1 | 29.7 | 6.4 – 19.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTF200 XYLOFON | DX51D + Z275 | 71×71 | 3 | – | 28.3 – 45.1 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TTV240 | S275 + Fe/Zn12c | 83×120 | 4 | 51.3 – 101.0 | 51.5 – 73.1 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
TTV240 XYLOFON | S275 + Fe/Zn12c | 83×120 | 4 | 50.8 – 99.0 | 49.4 – 61.0 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
NINO100100 | S250GD + Z275 | 78×100 | 2.5 | 5.9 – 20.0 | 4.2 – 34.6 | 3.8 – 23.2 | 1.1 – 3.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080 | S350GD + Z275 | 55×77 | 2.5 | 4.0 – 39.5 | 10.0 – 34.6 | 7.9 – 22.3 | 1.6 – 4.8 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080S | S350GD + Z275 | 55×94 | 2.5 | 32.0 – 49.9 | 22.6 – 35.0 | 14.2 – 18.9 | 1.4 – 2.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO100200 | S250GD + Z275 | 122×197 | 3 | 41.2 | 8.3 – 18.7 | 2.1 – 19.1 | 2.8 – 21.7 | Timber to timber & concrete, shear & tension, SC1/SC2 |
Screws| Picture | Screw Family | Thread Type | Head Type | Diameter [in] | Length [in] | Service Condition | Specification |
|---|---|---|---|---|---|---|---|
| Picture | HBS – Countersunk Screw | Partially Threaded | Countersunk Head | 0.14-0.48 | 1 3/16 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS EVO – Countersunk Screw | Partially Threaded | Countersunk Head | 0.16-0.32 | 1 9/16 – 12 5/8 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | LBS – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 – 4 | Dry | Screws for perforated plates, electrogalvanized carbon steel |
| Picture | LBS EVO – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 9/16 – 4 | Wet | Screws for perforated plates for outdoor use, C4 EVO coating, carbon steel |
| Picture | TBS – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.48 | 1 9/16 – 39 3/8 | Dry | Integrated washer, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | TBS EVO – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.4 | 2 3/8 – 15 3/4 | Wet | C4 EVO coating according to AC257, integrated washer, carbon steel |
| Picture | TBS MAX – XL Flange Head Screw | Partially Threaded | Flange Head | 0.32 | 4 3/4 – 15 3/4 | Dry | Longer thread, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.6 | 3 1/8 – 78 3/4 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS EVO – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.52 | 4 – 31 1/2 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | VGZ – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.28-0.44 | 3 1/8 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGZ EVO – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.21-0.44 | 3 1/8 – 23 5/8 | Dry | C4 coating, carbon steel |
| Picture | HBS Plate – Pan Head Screw for Plates | Plate Screw | Pan Head | 0.32-0.48 | 2 3/8 – 8 | Dry | Plate fastening, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS Plate EVO – Pan Head Screw | Plate Screw | Pan Head | 0.2-0.48 | 1 15/18 – 8 | Wet | C4 EVO coating, plate fastening, carbon steel |
Brackets |
Bracket Family | Material | Dimension [mm] | Thickness [mm] | F1,Rk [kN] | F23,Rk [kN] | F4,Rk [kN] | F5,Rk [kN] | Specification |
|---|---|---|---|---|---|---|---|---|---|
|
TCN200 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 103×120 | 3+12 | 68.1 – 79.8 | 56.7 – 66.4 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN240 + TCW240 | DX51D + Z275; S235 + Fe/Zn12c | 123×120 | 3+12 | 81.7 – 95.8 | 70.5 – 82.6 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCS240 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 123×130 | 3+12 | 33.9 | 85.9 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN200 | DX51D + Z275 | 103×120 | 3 | – | 8.4 – 42.1 | 20.7 – 20.9 | 3.6 – 6.6 | Timber to concrete, shear joints, SC1/SC2 |
|
TCN240 | DX51D + Z275 | 123×120 | 3 | – | 11.7 – 55.2 | 23.9 – 24.1 | 4.3 – 8.0 | Timber to concrete, shear joints, SC1/SC2 |
|
TTN240 | DX51D + Z275 | 93×120 | 3 | 7.4 – 16.2 | 51.3 – 58.0 | 23.8 | 7.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTN240 XYLOFON | DX51D + Z275 | 93×120 | 3+3 | – | 41.7 – 43.8 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCS240 | DX51D + Z275 | 123×130 | 3 | – | 36.1 – 70.3 | 21.1 | 17.1 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 | DX51D + Z275 | 130×130 | 3 | – | 60 | 20.7 | 16.8 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 XYLOFON | DX51D + Z275 | 130×130 | 3 | – | 35.7 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCF200 | DX51D + Z275 | 103×71 | 3 | – | 17.2 – 51.8 | 18.6 | 6.4 – 19.3 | Timber to concrete, shear joints, SC1/SC2 |
|
TTF200 | DX51D + Z275 | 71×71 | 3 | – | 20.0 – 55.1 | 29.7 | 6.4 – 19.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTF200 XYLOFON | DX51D + Z275 | 71×71 | 3 | – | 28.3 – 45.1 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TTV240 | S275 + Fe/Zn12c | 83×120 | 4 | 51.3 – 101.0 | 51.5 – 73.1 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
TTV240 XYLOFON | S275 + Fe/Zn12c | 83×120 | 4 | 50.8 – 99.0 | 49.4 – 61.0 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
NINO100100 | S250GD + Z275 | 78×100 | 2.5 | 5.9 – 20.0 | 4.2 – 34.6 | 3.8 – 23.2 | 1.1 – 3.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080 | S350GD + Z275 | 55×77 | 2.5 | 4.0 – 39.5 | 10.0 – 34.6 | 7.9 – 22.3 | 1.6 – 4.8 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080S | S350GD + Z275 | 55×94 | 2.5 | 32.0 – 49.9 | 22.6 – 35.0 | 14.2 – 18.9 | 1.4 – 2.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO100200 | S250GD + Z275 | 122×197 | 3 | 41.2 | 8.3 – 18.7 | 2.1 – 19.1 | 2.8 – 21.7 | Timber to timber & concrete, shear & tension, SC1/SC2 |
ScrewsBrackets| Picture | Screw Family | Thread Type | Head Type | Diameter [in] | Length [in] | Service Condition | Specification |
|---|---|---|---|---|---|---|---|
| Picture | HBS – Countersunk Screw | Partially Threaded | Countersunk Head | 0.14-0.48 | 1 3/16 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS EVO – Countersunk Screw | Partially Threaded | Countersunk Head | 0.16-0.32 | 1 9/16 – 12 5/8 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | LBS – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 – 4 | Dry | Screws for perforated plates, electrogalvanized carbon steel |
| Picture | LBS EVO – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 9/16 – 4 | Wet | Screws for perforated plates for outdoor use, C4 EVO coating, carbon steel |
| Picture | TBS – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.48 | 1 9/16 – 39 3/8 | Dry | Integrated washer, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | TBS EVO – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.4 | 2 3/8 – 15 3/4 | Wet | C4 EVO coating according to AC257, integrated washer, carbon steel |
| Picture | TBS MAX – XL Flange Head Screw | Partially Threaded | Flange Head | 0.32 | 4 3/4 – 15 3/4 | Dry | Longer thread, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.6 | 3 1/8 – 78 3/4 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS EVO – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.52 | 4 – 31 1/2 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | VGZ – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.28-0.44 | 3 1/8 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGZ EVO – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.21-0.44 | 3 1/8 – 23 5/8 | Dry | C4 coating, carbon steel |
| Picture | HBS Plate – Pan Head Screw for Plates | Plate Screw | Pan Head | 0.32-0.48 | 2 3/8 – 8 | Dry | Plate fastening, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS Plate EVO – Pan Head Screw | Plate Screw | Pan Head | 0.2-0.48 | 1 15/18 – 8 | Wet | C4 EVO coating, plate fastening, carbon steel |
|
Bracket Family | Material | Dimension [mm] | Thickness [mm] | F1,Rk [kN] | F23,Rk [kN] | F4,Rk [kN] | F5,Rk [kN] | Specification |
|---|---|---|---|---|---|---|---|---|---|
|
TCN200 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 103×120 | 3+12 | 68.1 – 79.8 | 56.7 – 66.4 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN240 + TCW240 | DX51D + Z275; S235 + Fe/Zn12c | 123×120 | 3+12 | 81.7 – 95.8 | 70.5 – 82.6 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCS240 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 123×130 | 3+12 | 33.9 | 85.9 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN200 | DX51D + Z275 | 103×120 | 3 | – | 8.4 – 42.1 | 20.7 – 20.9 | 3.6 – 6.6 | Timber to concrete, shear joints, SC1/SC2 |
|
TCN240 | DX51D + Z275 | 123×120 | 3 | – | 11.7 – 55.2 | 23.9 – 24.1 | 4.3 – 8.0 | Timber to concrete, shear joints, SC1/SC2 |
|
TTN240 | DX51D + Z275 | 93×120 | 3 | 7.4 – 16.2 | 51.3 – 58.0 | 23.8 | 7.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTN240 XYLOFON | DX51D + Z275 | 93×120 | 3+3 | – | 41.7 – 43.8 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCS240 | DX51D + Z275 | 123×130 | 3 | – | 36.1 – 70.3 | 21.1 | 17.1 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 | DX51D + Z275 | 130×130 | 3 | – | 60 | 20.7 | 16.8 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 XYLOFON | DX51D + Z275 | 130×130 | 3 | – | 35.7 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCF200 | DX51D + Z275 | 103×71 | 3 | – | 17.2 – 51.8 | 18.6 | 6.4 – 19.3 | Timber to concrete, shear joints, SC1/SC2 |
|
TTF200 | DX51D + Z275 | 71×71 | 3 | – | 20.0 – 55.1 | 29.7 | 6.4 – 19.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTF200 XYLOFON | DX51D + Z275 | 71×71 | 3 | – | 28.3 – 45.1 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TTV240 | S275 + Fe/Zn12c | 83×120 | 4 | 51.3 – 101.0 | 51.5 – 73.1 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
TTV240 XYLOFON | S275 + Fe/Zn12c | 83×120 | 4 | 50.8 – 99.0 | 49.4 – 61.0 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
NINO100100 | S250GD + Z275 | 78×100 | 2.5 | 5.9 – 20.0 | 4.2 – 34.6 | 3.8 – 23.2 | 1.1 – 3.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080 | S350GD + Z275 | 55×77 | 2.5 | 4.0 – 39.5 | 10.0 – 34.6 | 7.9 – 22.3 | 1.6 – 4.8 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080S | S350GD + Z275 | 55×94 | 2.5 | 32.0 – 49.9 | 22.6 – 35.0 | 14.2 – 18.9 | 1.4 – 2.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO100200 | S250GD + Z275 | 122×197 | 3 | 41.2 | 8.3 – 18.7 | 2.1 – 19.1 | 2.8 – 21.7 | Timber to timber & concrete, shear & tension, SC1/SC2 |
Screws| Picture | Screw Family | Thread Type | Head Type | Diameter [in] | Length [in] | Service Condition | Specification |
|---|---|---|---|---|---|---|---|
| Picture | HBS – Countersunk Screw | Partially Threaded | Countersunk Head | 0.14-0.48 | 1 3/16 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS EVO – Countersunk Screw | Partially Threaded | Countersunk Head | 0.16-0.32 | 1 9/16 – 12 5/8 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | LBS – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 – 4 | Dry | Screws for perforated plates, electrogalvanized carbon steel |
| Picture | LBS EVO – Round Head Screw for Plates | Plate Screw | Round Head | 0.2-0.28 | 1 9/16 – 4 | Wet | Screws for perforated plates for outdoor use, C4 EVO coating, carbon steel |
| Picture | TBS – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.48 | 1 9/16 – 39 3/8 | Dry | Integrated washer, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | TBS EVO – Flange Head Screw | Partially Threaded | Flange Head | 0.24-0.4 | 2 3/8 – 15 3/4 | Wet | C4 EVO coating according to AC257, integrated washer, carbon steel |
| Picture | TBS MAX – XL Flange Head Screw | Partially Threaded | Flange Head | 0.32 | 4 3/4 – 15 3/4 | Dry | Longer thread, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.6 | 3 1/8 – 78 3/4 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGS EVO – Fully Threaded Screw with Countersunk or Hexagonal Head | Fully Threaded | Countersunk or Hexagonal Head | 0.36-0.52 | 4 – 31 1/2 | Wet | C4 EVO coating according to AC257, 3 Thorns tip, carbon steel |
| Picture | VGZ – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.28-0.44 | 3 1/8 – 39 3/8 | Dry | 3 Thorns tip, electrogalvanized carbon steel |
| Picture | VGZ EVO – Full Threaded Screws with Cylindrical Head | Fully Threaded | Cylindrical Head | 0.21-0.44 | 3 1/8 – 23 5/8 | Dry | C4 coating, carbon steel |
| Picture | HBS Plate – Pan Head Screw for Plates | Plate Screw | Pan Head | 0.32-0.48 | 2 3/8 – 8 | Dry | Plate fastening, 3 Thorns tip, electrogalvanized carbon steel |
| Picture | HBS Plate EVO – Pan Head Screw | Plate Screw | Pan Head | 0.2-0.48 | 1 15/18 – 8 | Wet | C4 EVO coating, plate fastening, carbon steel |
Brackets |
Bracket Family | Material | Dimension [mm] | Thickness [mm] | F1,Rk [kN] | F23,Rk [kN] | F4,Rk [kN] | F5,Rk [kN] | Specification |
|---|---|---|---|---|---|---|---|---|---|
|
TCN200 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 103×120 | 3+12 | 68.1 – 79.8 | 56.7 – 66.4 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN240 + TCW240 | DX51D + Z275; S235 + Fe/Zn12c | 123×120 | 3+12 | 81.7 – 95.8 | 70.5 – 82.6 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCS240 + TCW200 | DX51D + Z275; S235 + Fe/Zn12c | 123×130 | 3+12 | 33.9 | 85.9 | – | – | Timber to concrete, high shear & tension, SC1/SC2 |
|
TCN200 | DX51D + Z275 | 103×120 | 3 | – | 8.4 – 42.1 | 20.7 – 20.9 | 3.6 – 6.6 | Timber to concrete, shear joints, SC1/SC2 |
|
TCN240 | DX51D + Z275 | 123×120 | 3 | – | 11.7 – 55.2 | 23.9 – 24.1 | 4.3 – 8.0 | Timber to concrete, shear joints, SC1/SC2 |
|
TTN240 | DX51D + Z275 | 93×120 | 3 | 7.4 – 16.2 | 51.3 – 58.0 | 23.8 | 7.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTN240 XYLOFON | DX51D + Z275 | 93×120 | 3+3 | – | 41.7 – 43.8 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCS240 | DX51D + Z275 | 123×130 | 3 | – | 36.1 – 70.3 | 21.1 | 17.1 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 | DX51D + Z275 | 130×130 | 3 | – | 60 | 20.7 | 16.8 | Timber to timber, shear joints, SC1/SC2 |
|
TTS240 XYLOFON | DX51D + Z275 | 130×130 | 3 | – | 35.7 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TCF200 | DX51D + Z275 | 103×71 | 3 | – | 17.2 – 51.8 | 18.6 | 6.4 – 19.3 | Timber to concrete, shear joints, SC1/SC2 |
|
TTF200 | DX51D + Z275 | 71×71 | 3 | – | 20.0 – 55.1 | 29.7 | 6.4 – 19.3 | Timber to timber, shear joints, SC1/SC2 |
|
TTF200 XYLOFON | DX51D + Z275 | 71×71 | 3 | – | 28.3 – 45.1 | – | – | Timber to timber, shear joints, SC1/SC2 |
|
TTV240 | S275 + Fe/Zn12c | 83×120 | 4 | 51.3 – 101.0 | 51.5 – 73.1 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
TTV240 XYLOFON | S275 + Fe/Zn12c | 83×120 | 4 | 50.8 – 99.0 | 49.4 – 61.0 | – | – | Timber to timber, shear & tension, SC1/SC2 |
|
NINO100100 | S250GD + Z275 | 78×100 | 2.5 | 5.9 – 20.0 | 4.2 – 34.6 | 3.8 – 23.2 | 1.1 – 3.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080 | S350GD + Z275 | 55×77 | 2.5 | 4.0 – 39.5 | 10.0 – 34.6 | 7.9 – 22.3 | 1.6 – 4.8 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO15080S | S350GD + Z275 | 55×94 | 2.5 | 32.0 – 49.9 | 22.6 – 35.0 | 14.2 – 18.9 | 1.4 – 2.4 | Timber to timber & concrete, shear & tension, SC1/SC2 |
|
NINO100200 | S250GD + Z275 | 122×197 | 3 | 41.2 | 8.3 – 18.7 | 2.1 – 19.1 | 2.8 – 21.7 | Timber to timber & concrete, shear & tension, SC1/SC2 |
Anzor
ASH
Binderholz
Eurotec
Hyne
KLH Supplier
Klimas
NeXTimber
Pitzl
Prolam
Red Stag
Schmid Schrauben Hainfeld
SIHGA
Simpson Strong-Tie
SPAX
Timber Unlimited
Würth
XLAM
XLAM Dolomiti
Dowels
CLT
GLT
Light-frame
Ribbed Deck
TCC
